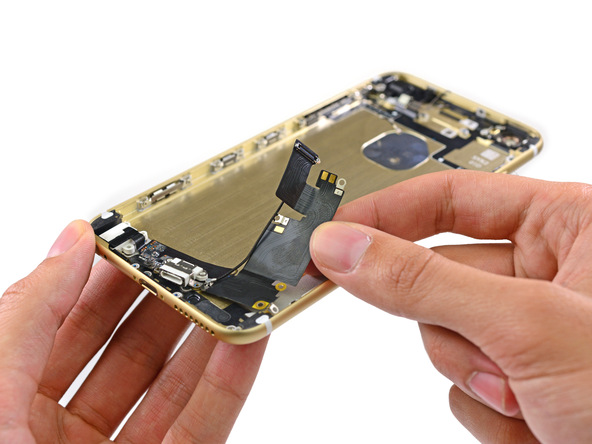

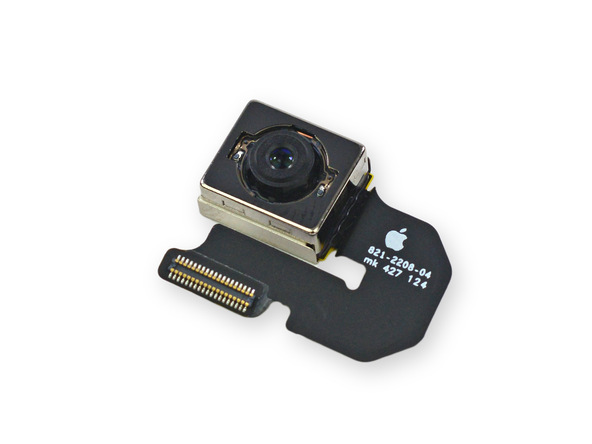

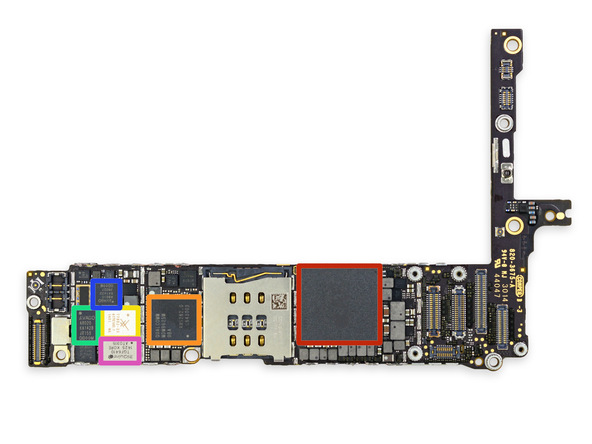

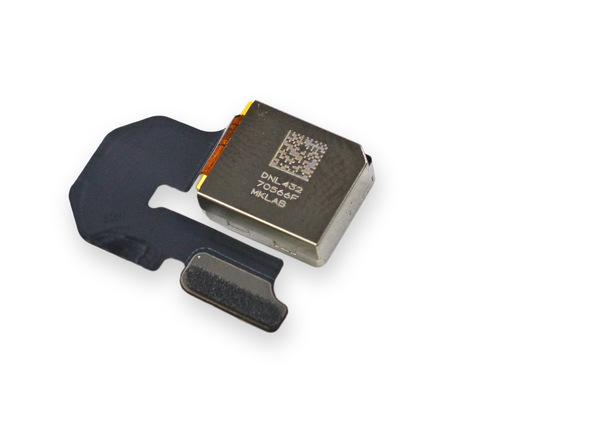

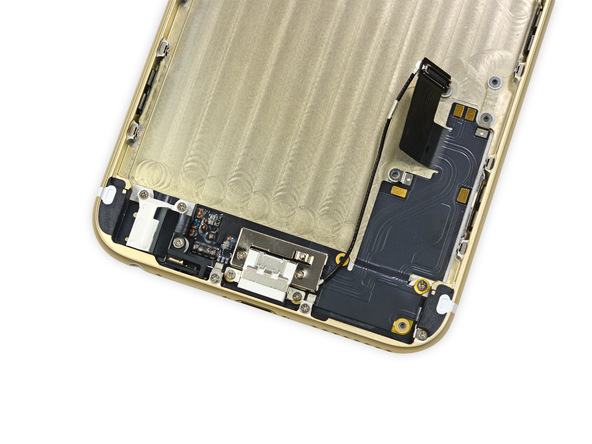

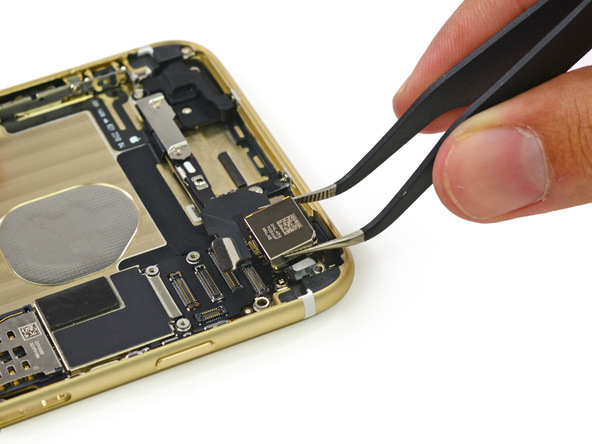

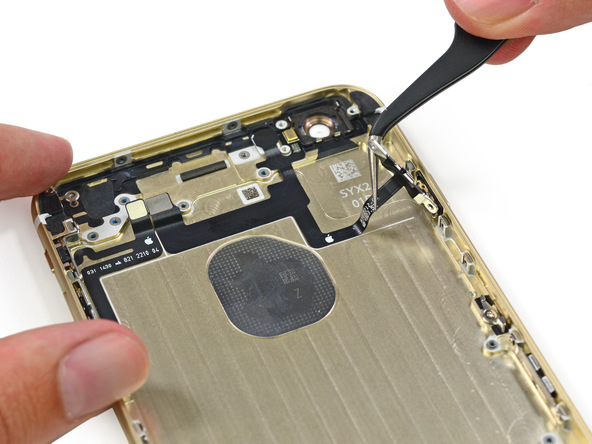

可维修分7分 iPhone 6 Plus全面拆解

<article><section data-type="gallery"><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082426280.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082426305.jpg?imageView2/2/w/1260" data-desc="▲相比较传统的十字螺丝苹果显然非常偏爱于使用防撬Pentalobe螺丝 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082426516.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431505.jpg?imageView2/2/w/1260" data-desc="▲使用工具打开iPhone6 Plus，内部配置终于呈现在我们眼前 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431608.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431565.jpg?imageView2/2/w/1260" data-desc="▲在将屏幕拆卸下来之后我们终于看到了iPhone 6 Plus的内部全貌 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431266.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431786.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431916.jpg?imageView2/2/w/1260" data-desc="▲接下来的步骤就是小心的移除电池组件，电池连接器被金属组件覆盖，所以需要使用镊子先剥除 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431404.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431937.jpg?imageView2/2/w/1260" data-desc="　　▲电池重量为43g，根据标记的参数显示3.82 V和11.1 Wh，容量为2915mAh，几乎是iPhone 5S（1560mAh）的两倍。根据苹果官方描述iPhone 6 Plus能够支持24小时连续3G通话，待机时间超过384小时。 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082431231.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432159.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432478.jpg?imageView2/2/w/1260" data-desc="▲看起来这是全新的振动器，通过拆解可以看到里面的铜圈。 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432528.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432190.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432812.jpg?imageView2/2/w/1260" data-desc="　　▲相机部分能够很容易用镊子取出，iSight相机模块标记为“DNL432 70566F MKLAB”，800万后置摄像头（1.5µ pixels）具备两项新功能：光学防抖和\"Focus Pixel\"相位检测自动对焦。 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432772.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432119.jpg?imageView2/2/w/1260" data-desc="▲进一步拆解摄像头 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432939.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432311.jpg?imageView2/2/w/1260" data-desc="▲更进一步拆解摄像头 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432281.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432252.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432635.jpg?imageView2/2/w/1260" data-desc="▲接下来小心的转开螺丝，然后取出逻辑主板 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432428.jpg?imageView2/2/w/1260" data-desc="　　▲L形状的主板上绿色部分Avago A8020 KA1428 JR159，蓝色元件为Avago A8010 KA1422 JNO27，黄色元件为Skyworks 77802-23，紫色元件为TriQuint TQF6410 1425 KORE ATO315，桔色为高通QualcommMDM9625MLTE Modem，红色为苹果A8处理器。 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432559.jpg?imageView2/2/w/1260" data-desc="▲A8处理器细节 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432171.jpg?imageView2/2/w/1260" data-desc="▲主板背面细节 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432140.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082432856.jpg?imageView2/2/w/1260" data-desc="▲拆除扬声器 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433431.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433369.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433137.jpg?imageView2/2/w/1260" data-desc="▲Lightning连接器总成由耳机端口、Lightning连接器和天线连接器 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433637.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433785.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433542.jpg?imageView2/2/w/1260" data-desc="▲天线无处不在，顶部和尾部都有天线零件 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433245.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433350.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433708.jpg?imageView2/2/w/1260" data-desc="▲同时拆除电源按钮和音量增减按键 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433932.jpg?imageView2/2/w/1260" data-desc=""></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433267.jpg?imageView2/2/w/1260" data-desc="▲在电源按钮上可以看到使用橡胶进行加固，能够防水防尘。 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433112.jpg?imageView2/2/w/1260" data-desc="▲iPhone 6 Plus拆机完成，全家福如上 "></img><img src="//himg2.huanqiucdn.cn/attachment2010/2014/0928/20140928082433869.jpg?imageView2/2/w/1260" data-desc="▲最终iFixit对其可拆卸维修分得分为7分。 "></img></section><section data-type="text">在过去几年间苹果所营造的iPhone系列几乎成为了移动行业的标杆，也是外媒在新机比较中使用频率最高的设备。iPhone在不断颠覆世界的同时让我们体验了一次又一次的技术变革，而更强悍的硬件配置无疑是推动变革的核心动力。国内和日本科技媒体已经对4.7英寸iPhone进行了全面拆解，而知名维修网站iFixit也对5.5英寸的iPhone 6 Plus下手了，接下来让我们来看看iPhone 6的内部构造。</section></article>

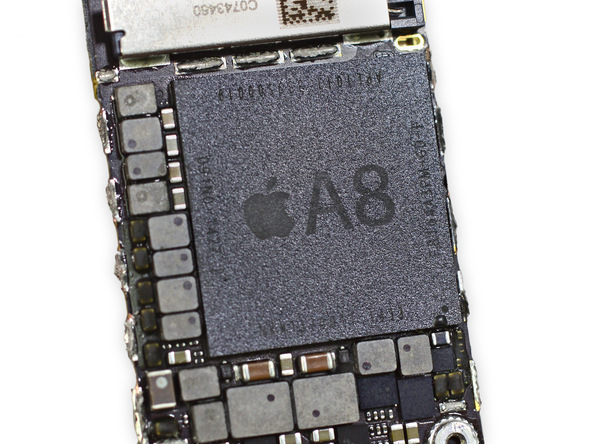

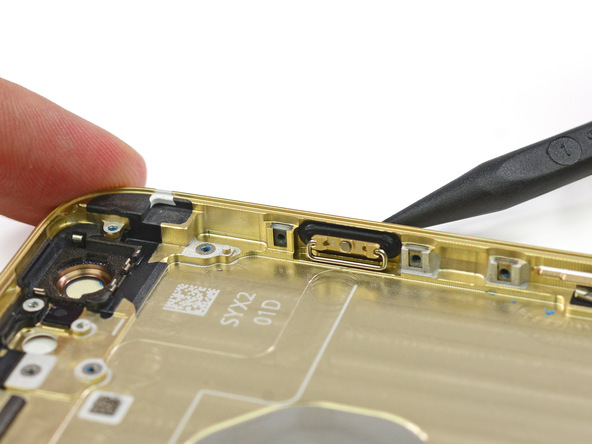

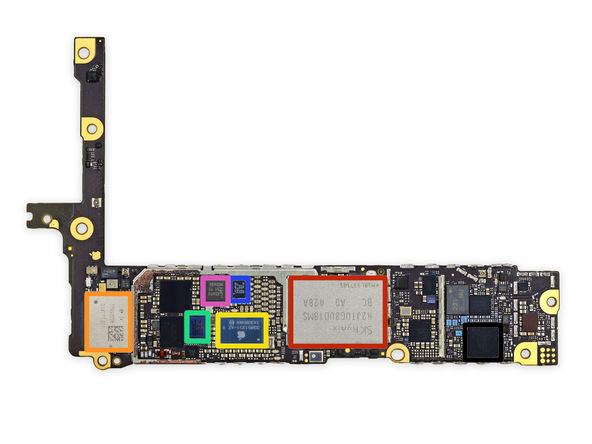

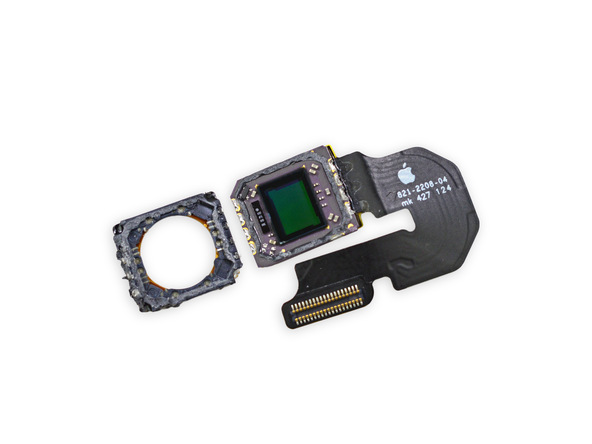

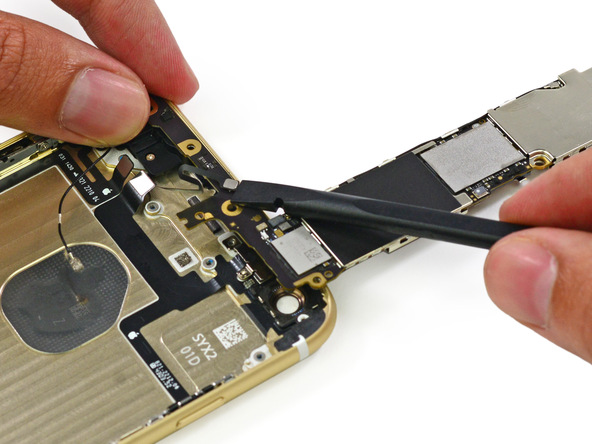

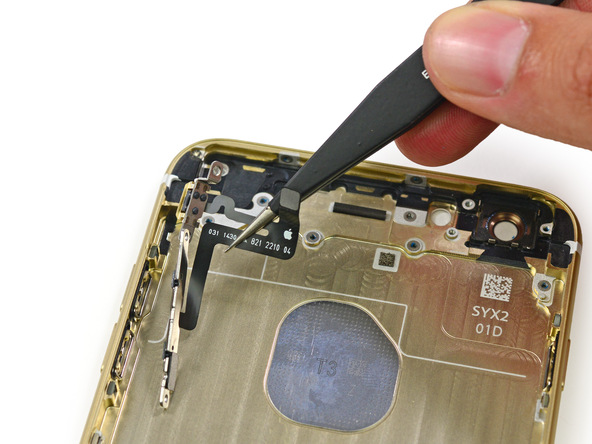

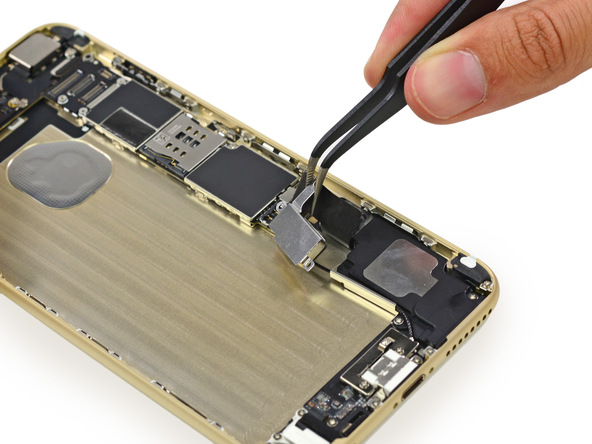

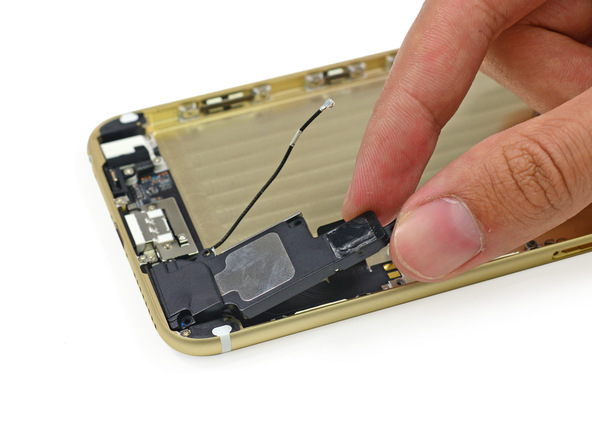

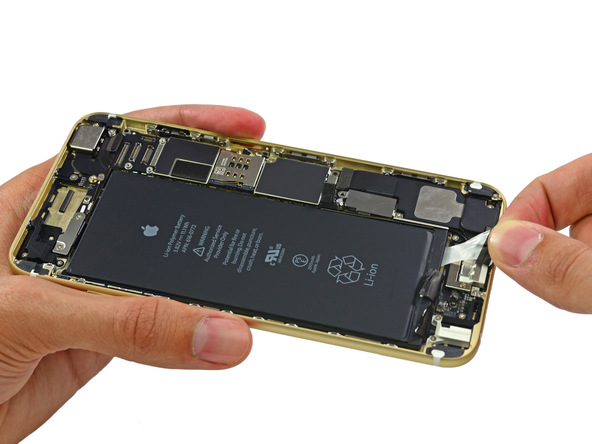

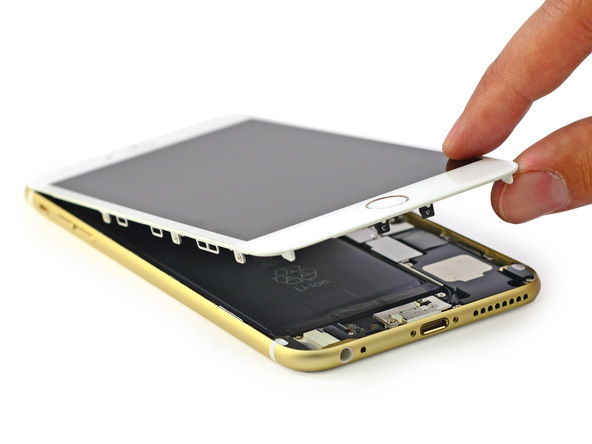

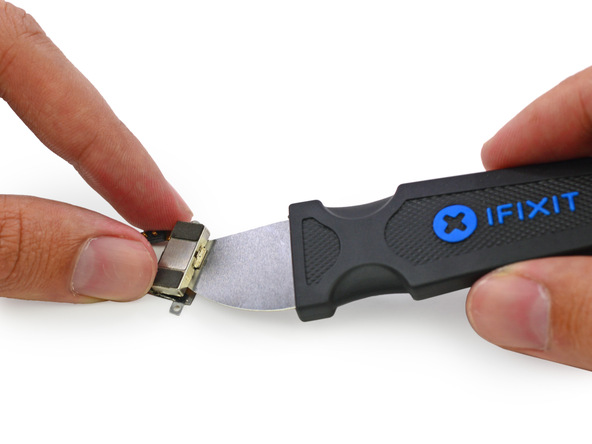

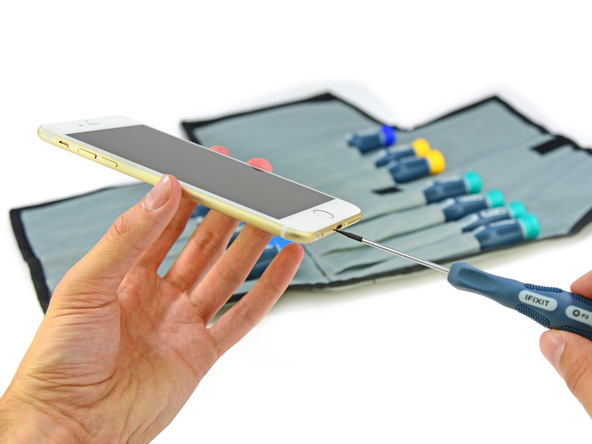

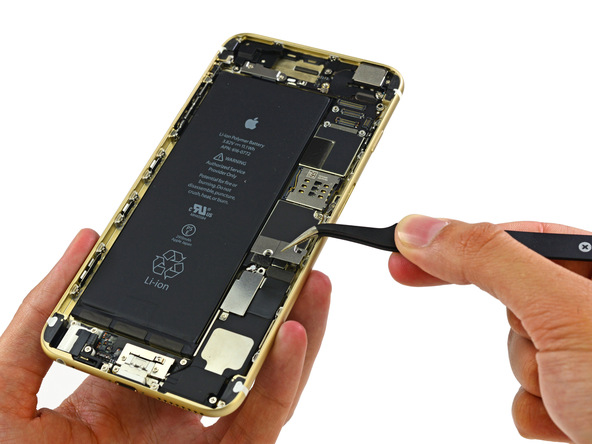

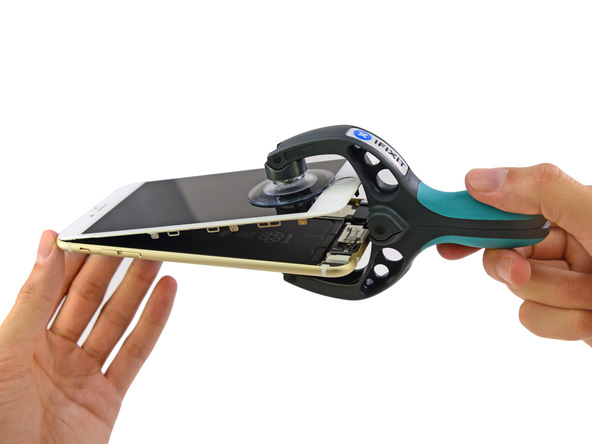

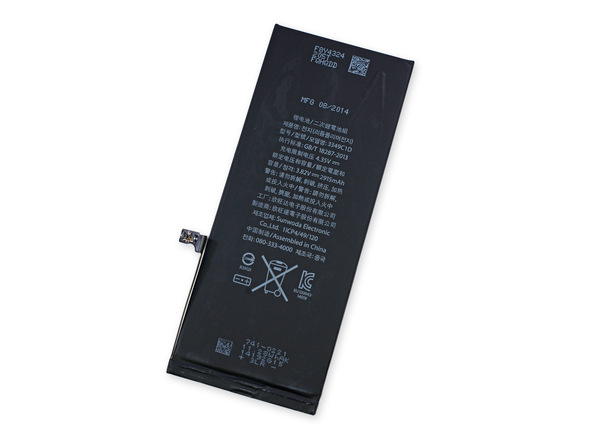

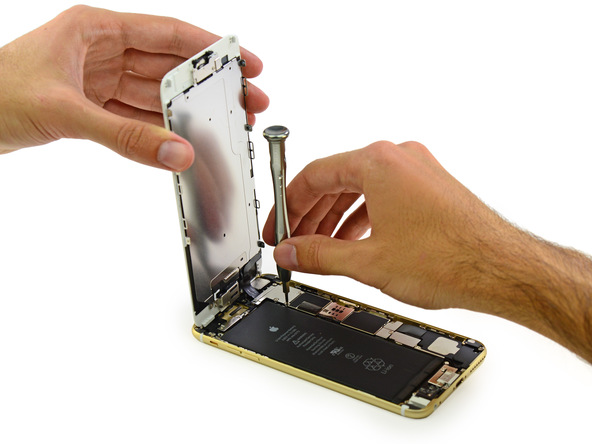

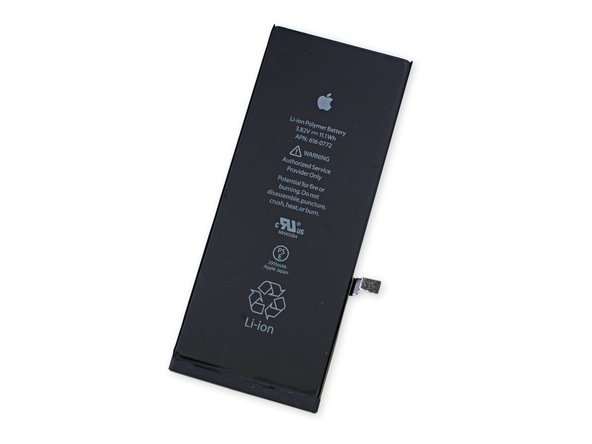

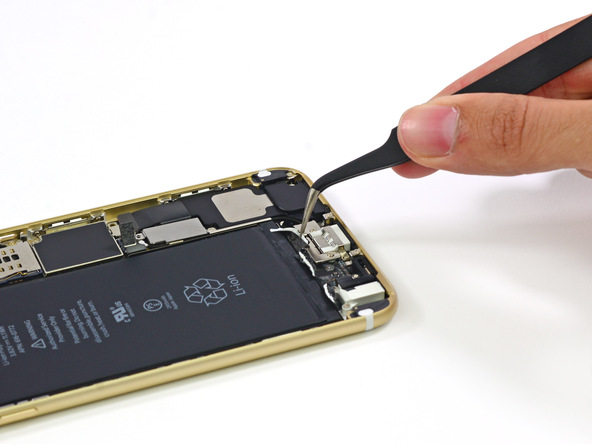

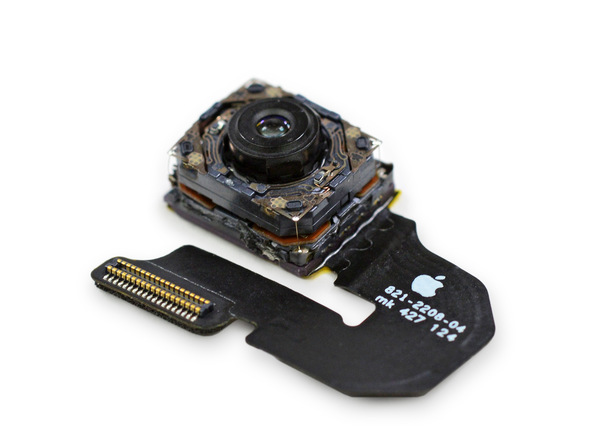

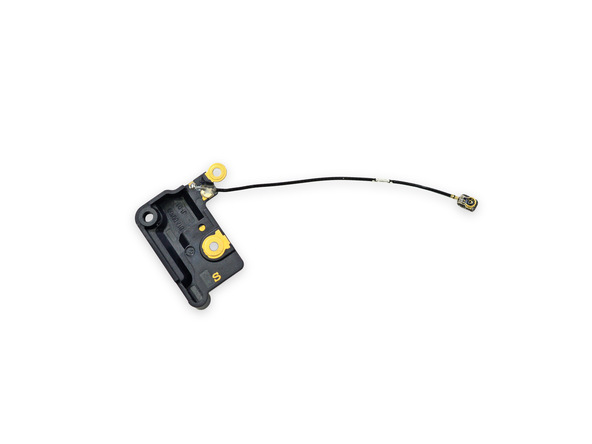

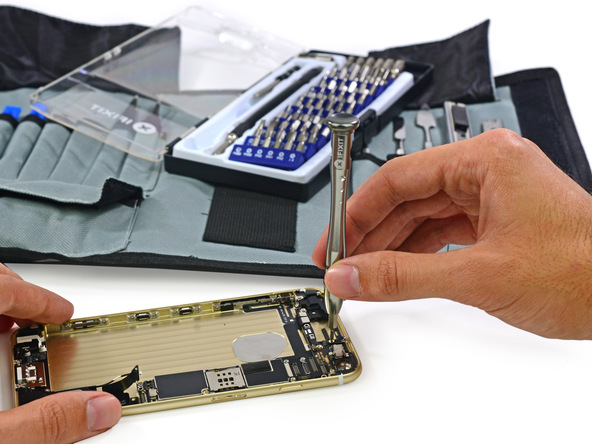

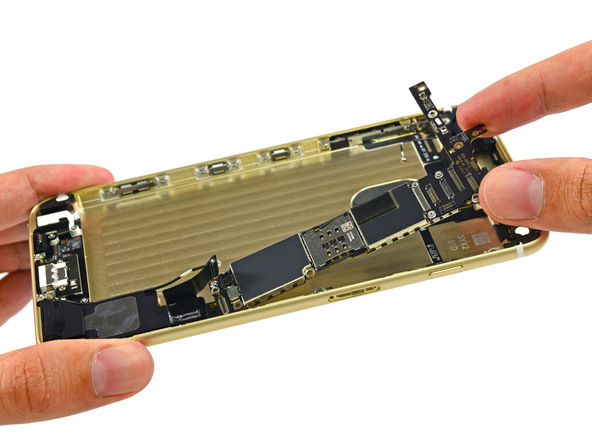

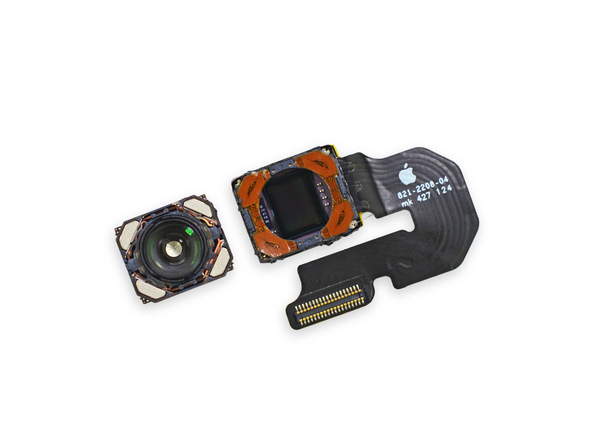

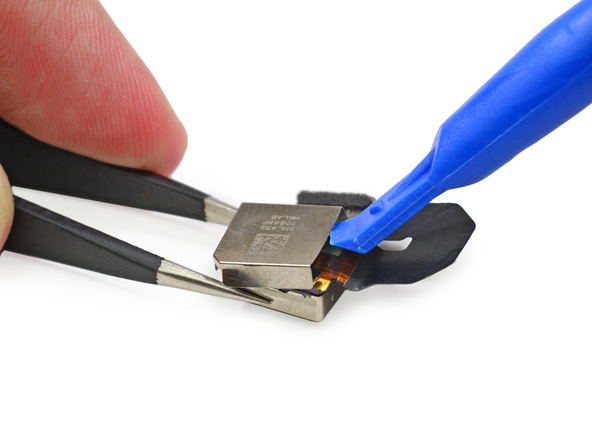

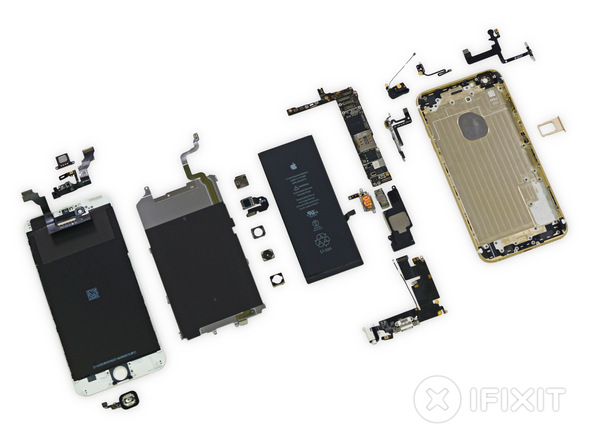

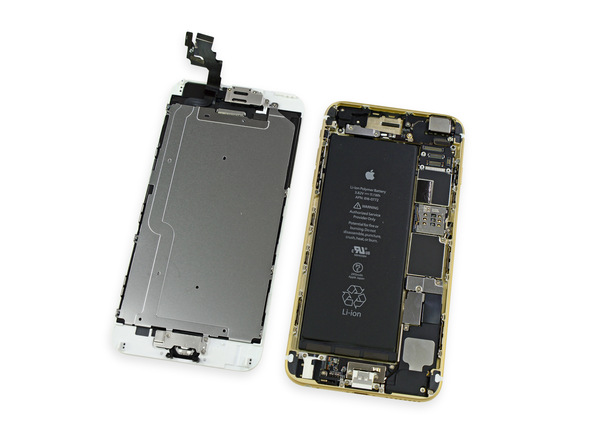

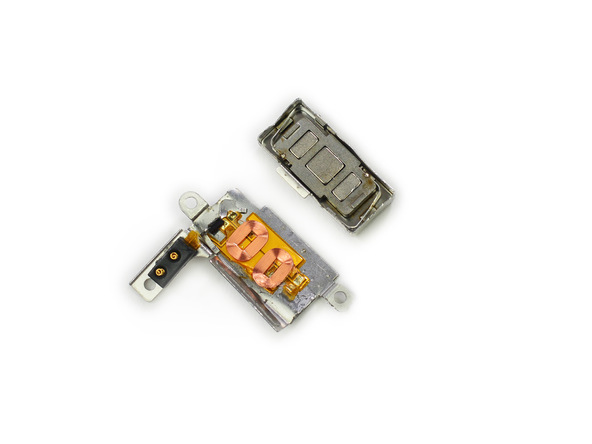

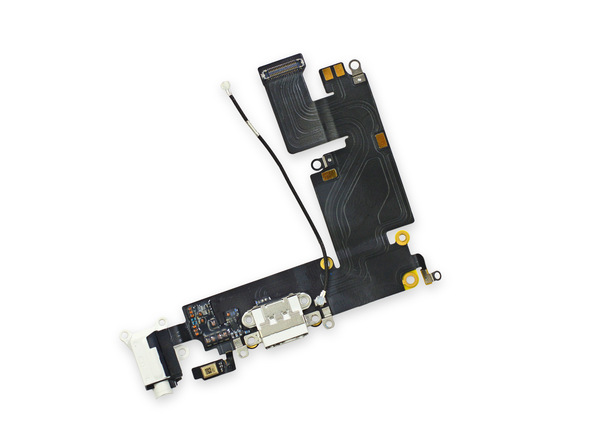

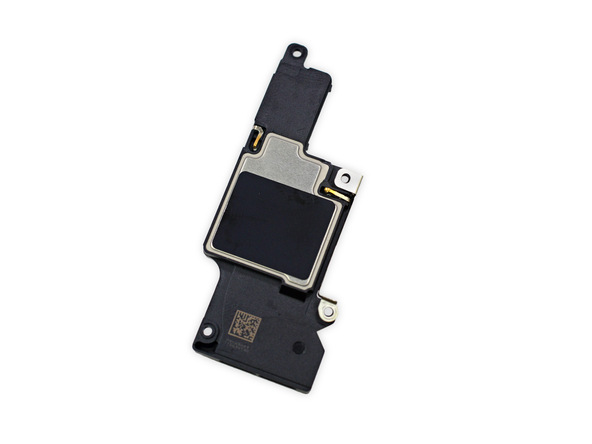

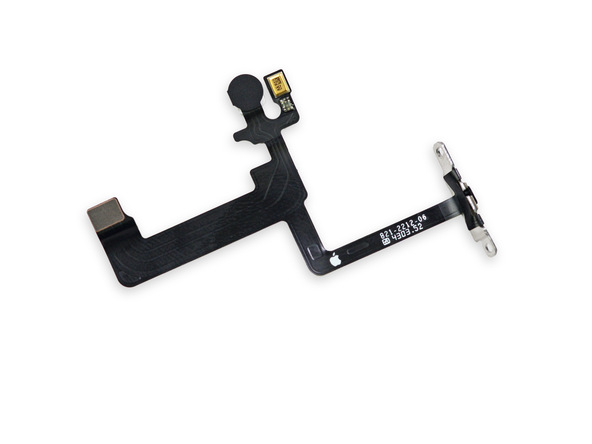

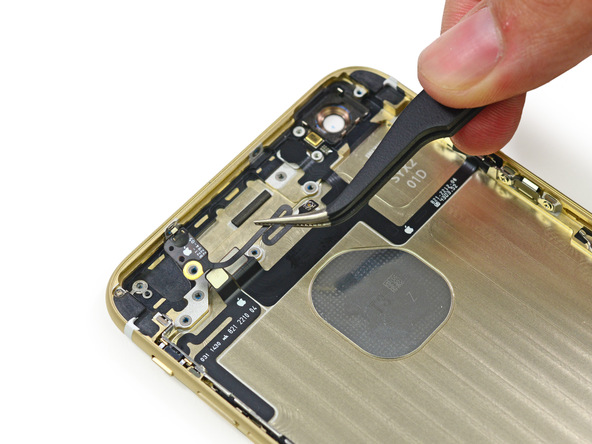

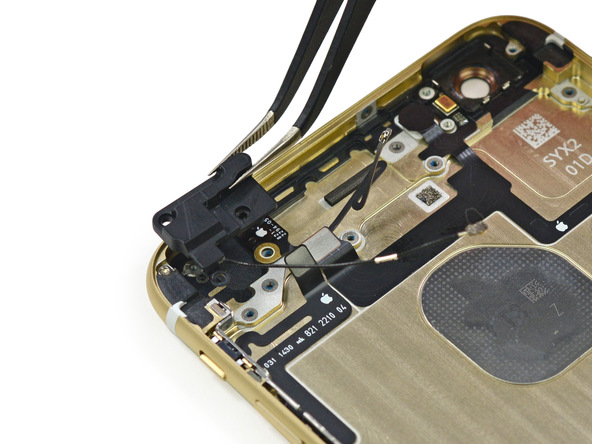

{"gallery":{"members":[{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082426280.jpg"},{"desc":"▲相比较传统的十字螺丝苹果显然非常偏爱于使用防撬Pentalobe螺丝\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082426305.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082426516.jpg"},{"desc":"▲使用工具打开iPhone6 Plus，内部配置终于呈现在我们眼前\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431505.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431608.jpg"},{"desc":"▲在将屏幕拆卸下来之后我们终于看到了iPhone 6 Plus的内部全貌\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431565.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431266.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431786.jpg"},{"desc":"▲接下来的步骤就是小心的移除电池组件，电池连接器被金属组件覆盖，所以需要使用镊子先剥除\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431916.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431404.jpg"},{"desc":"　　▲电池重量为43g，根据标记的参数显示3.82 V和11.1 Wh，容量为2915mAh，几乎是iPhone 5S（1560mAh）的两倍。根据苹果官方描述iPhone 6 Plus能够支持24小时连续3G通话，待机时间超过384小时。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431937.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082431231.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432159.jpg"},{"desc":"▲看起来这是全新的振动器，通过拆解可以看到里面的铜圈。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432478.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432528.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432190.jpg"},{"desc":"　　▲相机部分能够很容易用镊子取出，iSight相机模块标记为“DNL432 70566F MKLAB”，800万后置摄像头（1.5µ pixels）具备两项新功能：光学防抖和\\\"Focus Pixel\\\"相位检测自动对焦。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432812.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432772.jpg"},{"desc":"▲进一步拆解摄像头\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432119.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432939.jpg"},{"desc":"▲更进一步拆解摄像头\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432311.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432281.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432252.jpg"},{"desc":"▲接下来小心的转开螺丝，然后取出逻辑主板\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432635.jpg"},{"desc":"　　▲L形状的主板上绿色部分Avago A8020 KA1428 JR159，蓝色元件为Avago A8010 KA1422 JNO27，黄色元件为Skyworks 77802-23，紫色元件为TriQuint TQF6410 1425 KORE ATO315，桔色为高通QualcommMDM9625MLTE Modem，红色为苹果A8处理器。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432428.jpg"},{"desc":"▲A8处理器细节\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432559.jpg"},{"desc":"▲主板背面细节\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432171.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432140.jpg"},{"desc":"▲拆除扬声器\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082432856.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433431.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433369.jpg"},{"desc":"▲Lightning连接器总成由耳机端口、Lightning连接器和天线连接器\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433137.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433637.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433785.jpg"},{"desc":"▲天线无处不在，顶部和尾部都有天线零件\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433542.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433245.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433350.jpg"},{"desc":"▲同时拆除电源按钮和音量增减按键\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433708.jpg"},{"desc":"","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433932.jpg"},{"desc":"▲在电源按钮上可以看到使用橡胶进行加固，能够防水防尘。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433267.jpg"},{"desc":"▲iPhone 6 Plus拆机完成，全家福如上\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433112.jpg"},{"desc":"▲最终iFixit对其可拆卸维修分得分为7分。\r\n","url":"\/\/himg2.huanqiucdn.cn\/attachment2010\/2014\/0928\/20140928082433869.jpg"}]}}
